Autel current and latest product MaxiIM IM608 Pro is the most modern and unique all-in-one tool for programming and diagnostics of keys today, in addition to diagnostics on all systems (ECUs)  and advanced diagnostic services, all in a 10.1-inch Android-based touchscreen tablet. It is equipped with an XP400 Pro key programmer and a MaxiFlash ECU programmer to ensure full coverage of IMMO and programming functions. Along with the ability to quickly diagnose all modules of most brands and models on the market, the IM608 Pro offers you all the special features. It's the unique key programming and diagnostic tool you want.

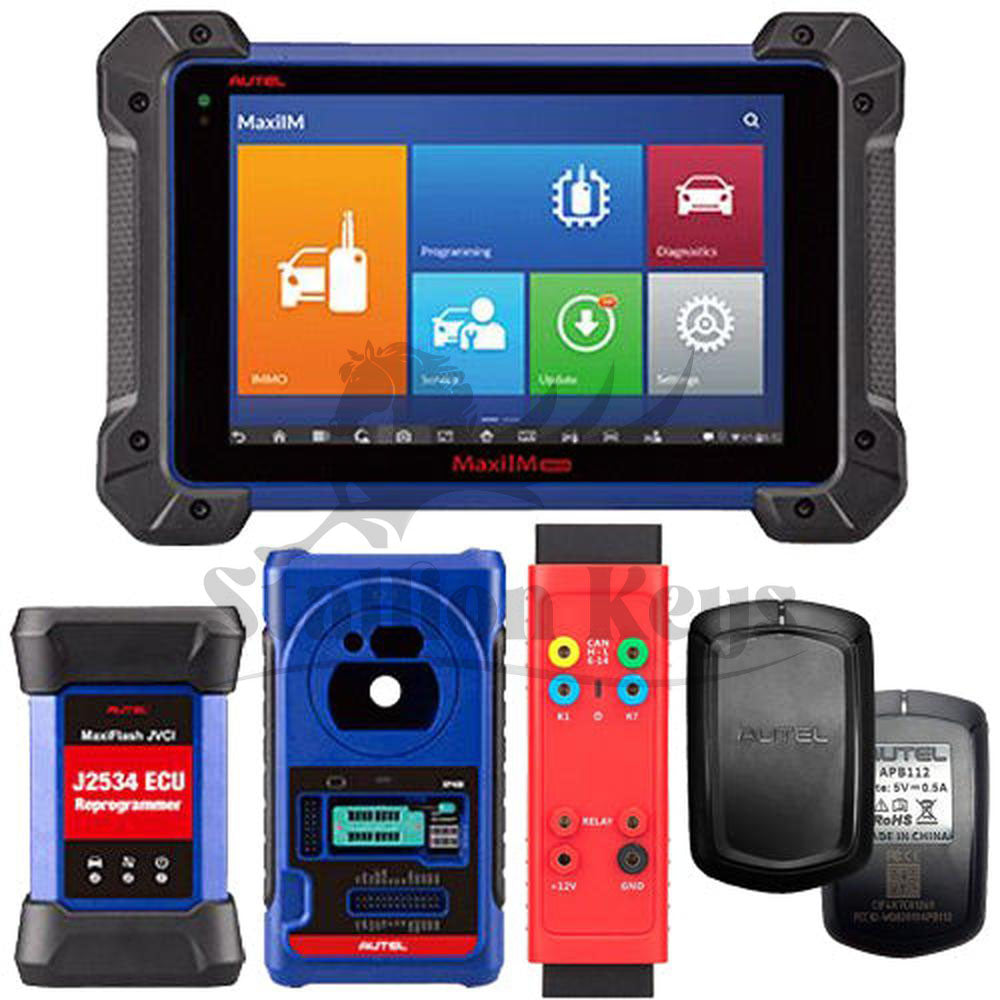

Scope of delivery:
XP400PRO Key and Chip Programmer: access the key chip, retrieve, read, and write key information
JVCI J2534 Pass-Thru Wireless Programmer: ECU programming function
Key Programming Adapter Kit (IMKPA): enables read/write/erase for Mercedes Benz ESL_W209/ W906 data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen/ AUDI/ BMW/ Benz Key Unlock

New:
BMW EWS3 Key Learning
Read/write/delete Mercedes-Benz W209 EIZ
Learn OEM Mercedes-Benz NEC keys
Read/write data EEPROM
– Added 60 chip types, now supports 445 types
MCU - Added 32 chip types, now supports 2067 types
Engine ECU - added 1 chip type, now supports 41 chip types;
Immobilizer ECU - Added 3 chip types, now supports 181 chip types.
Key unlock - supports 11 key types

Smart Mode (Guided and Automated Key Learning Function)
Auto Detect - Manufacturer Model - Year - System
Read PIN (All Keys Lost)
Key Learning

1 year free updates



•  Samsung Exynos 5260 (2GB ROM)

•  10.1 inch 1024 x 768 pixel LCD capacitive touch screen

•  Internal reliable 64GB storage
•  Read/write transponder, read/write EEPROM/MCU

•  Android OS for fast boot up and multitasking
•  Expert mode for advanced button learning

•  Key programming/all system diagnostics/extended maintenance services

•  Smart mode for guided and automated key learning

•  OE-level diagnostics for more than 80 US, Asian and European makes and models

•  Read PIN/CS (all keys lost), key generation, key learning, remote learning

•  IMMO ECU Reset/Adjustment, Refresh/Coding

•  Advanced maintenance services including EPB, DPF, SAS, oil reset and BMS

Technical specifications:

• Operating system: Android™ 4.4.2, KitKat
  Processor: Samsung Exynos hexa-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

• Storage: 2GB RAM and 64GB onboard storage

• Display: 10.1 inch LED capacitive touchscreen with a resolution of 1920 x 1200

• Connectivity:  WLAN (802.11 a/b/g/n/ac),  USB: 2.0,  BT v.2.1 + EDR,  SD card (supports up to 32GB),  HDMI

• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

• Power and Battery:  15000mAh 3.8V lithium polymer battery

• Charging via 12 V AC/DC power pack at a temperature between 0°C and 45°C

• Input voltage: 12V (9-24V)

• Power Consumption: 6.5W

• Operating temperature: 0 to 50 °C

• Storage temperature: -20 to 60 °C

• Dimensions: (WxHxD) 300mm x 220mm x 50mm

• Weight:  1.42kg

Logs:  ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, blink code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, high-speed, middle-speed, low-speed and single-wire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault Tolerant CAN
