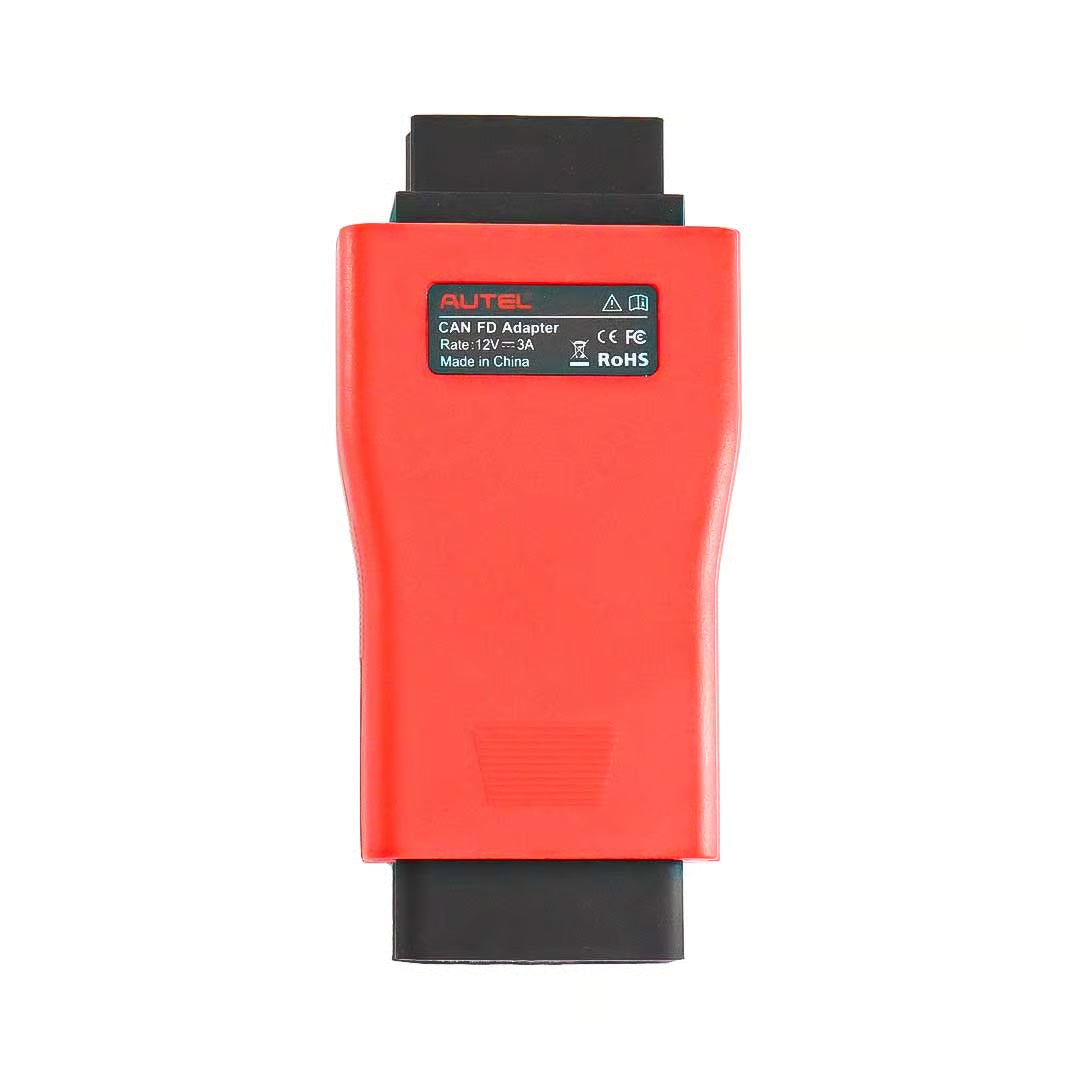

Autel CAN-FD Adapter overview:
The AUTEL CAN FD Adapter is designed to support the diagnosis of vehicle models with CAN FD protocol, including the GM 2020+ models. It is compatible with a supported Autel vehicle communication interface (VCI), Maxisys Elite, 908 series, and 906 series to communicate with applicable vehicles.
-
FitmentThe Autel CANFD adapter is designed to support the diagnosis of vehicle models with CAN FD protocol, including 2020+ GM & Cadillac models.
Compatible with a supported Autel vehicle communication interface (VCI) to communicate with applicable vehicles.
Small size and easy to carry, superior flexibility and durability.
Cannot work with AP200 or Maxiflash Pro
The CAN FD Adapter is currently compatible with Autel's MaxiFlash Elite J2534-VCI, Wireless Diagnostic Interface, VCI 100, and VCI Mini.
Prior to Use, Update the VCI with The Latest Firmware.
Use the power supply and plug in the MaxiSYS tablet to an electrical outlet. Attach the supplied USB cable to the MaxiSYS tablet. Tap the VCI icon on the Tablet toolbar. Next, tap the VCI firmware version and if an update is available, tap Update for the new version to install. A progress bar will display as the update is installed. Once completed, follow the instructions displayed and reboot the VCI by detaching the USB cable from the VCI and then plug the USB cable back into the VCI. The tabler will then connect to the VCI. A message will display once the VCI update is completed.)
